  • Duplex Stainless Steels: What Makes Them Different?

    Duplex Stainless Steels: What Makes Them Different?

    Properties, Grades, and Applications in Corrosive Environments

    What Are Duplex Stainless Steels?

    Duplex Stainless Steels are a family of high-performance, corrosion-resistant alloys with a unique dual phase microstructure, consisting of approximately 50% ferrite and 50% austenite. This balanced structure delivers a unique combination of high strength, improved toughness, and superior resistance to stress corrosion cracking compared to conventional stainless steels.

    These alloys typically contain 21% to 33% chromium, providing excellent resistance in oxidizing environments. Molybdenum and nitrogen are added to significantly enhance resistance to localized corrosion, including pitting and crevice corrosion. Nickel, typically ranging from 1% to 9%, is used to stabilize and maintain the desired duplex microstructure.

    Duplex Stainless Steel Grades and Classification

    Duplex stainless steels are classified based on alloy composition and corrosion resistance:

    • Lean Duplex
    • Standard Duplex (22% Cr) – e.g., UNS S31803 / (2205)
    • 25% Chromium Duplex – e.g., UNS S31260 / (2507)
    • Super Duplex – e.g., UNS S32750 / S32760 / S39274
    • Hyper Duplex

    For demanding applications such as oil and gas production, carbon capture and sequestration (CCUS), and saltwater disposal, the most commonly specified materials include Standard Duplex (22% Cr), 25% Cr Duplex, and Super Duplex.

    Super Duplex stainless steels are differentiated by their superior resistance to localized corrosion, quantified using the Pitting Resistance Equivalent Number (PREN).

    PREN=%Cr+3.3×%Mo+16×%N

    A PREN value above 40 indicates high resistance to pitting corrosion, making Super Duplex alloys ideal for aggressive chloride-rich and subsea environments.

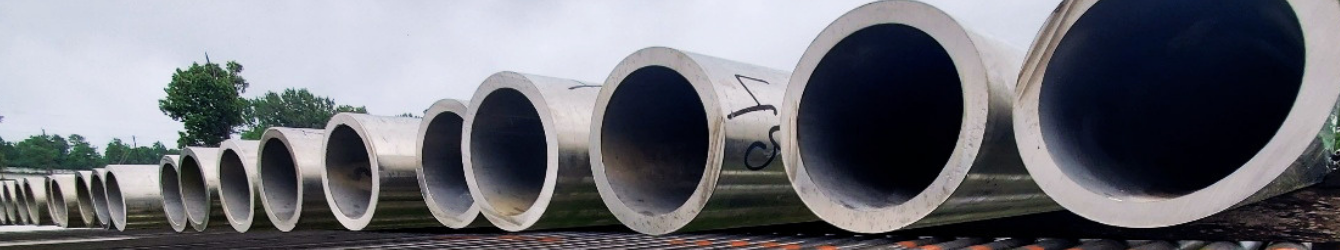

    Duplex Stainless Steel Pipe: Mechanical Properties and Supply Conditions

    Duplex stainless steel pipe is typically supplied in either the annealed or cold-worked (cold-hardened) condition.

    Annealed Condition

    • Yield strength typically exceeding 75 ksi
    • Excellent ductility and toughness
    • Ideal for fabrication, cold forming, and welding

    Cold-Worked (Cold-Hardened) Condition

    • Yield strength exceeding 140 ksi
    • Enhanced mechanical strength for high-pressure applications
    • Common in OCTG and downhole environments

    This combination of strength and corrosion resistance allows duplex stainless steels to outperform traditional austenitic grades in demanding service conditions.

    Applications of Duplex Stainless Steel Pipe

    Duplex stainless steel pipe is widely used across industries where both strength and corrosion resistance are critical:

    • Oil and gas production (upstream and midstream)
    • Carbon Capture and Sequestration (CCS / CCUS)
    • Geothermal wells
    • Offshore applications
    • Marine and underwater environments
    • Chemical processing
    • Pulp and paper production
    • Desalination and salt evaporation systems
    • Heat exchangers
    • Valves and pumps

    Material Selection Considerations for Duplex Stainless Steels

    The proper selection of Duplex Stainless Steel pipe depends firstly on the range of environments anticipated in service. Consideration must be given not only to the expected steady state operating conditions, but also to what may occur in the event of interruptions in operation and the potential for unplanned events. There are many factors that contribute to the corrosive nature of the environment. As environmental severity increases, higher alloy content (and cost) may be required to mitigate corrosion risks and prevent premature failure. Engaging a corrosion engineer or metallurgist is strongly recommended to ensure proper material selection based on application-specific conditions.

    Why Source Duplex Stainless Steel Through PipeSearch?

    PipeSearch is a digital trading platform designed to simplify the sourcing of premium OCTG and corrosion-resistant alloys, including duplex and super duplex stainless steels. PipeSearch enables users to access a global inventory of quality-verified OCTG with reduced lead times.

    Our proprietary 220-point inspection and quality rating process provides transparency and confidence, allowing buyers to move quickly while ensuring materials meet performance requirements. Browse our global warehouse or contact us today, and our trusted network will help you find the pipe you need.

  • Pitting Corrosion

    Pitting Corrosion

    Material Selection Guidelines for Mitigating the Risk

    Corrosion-resistant alloys rely on a passive chromium oxide film on their surface for protection against corrosion. However, exposure to chlorides or oxygen can destabilize this protective film. When this occurs, small areas on the surface become active, leading to rapid localized corrosion, also known as pitting corrosion. This process creates small, often undetectable, holes in the metal, which can result in catastrophic failure. Additionally, elevated temperatures and low pH levels further compromise the stability of the chromium oxide film.

    Improving Corrosion Resistance

    Increasing the chromium content in the alloy or alloying it with molybdenum, tungsten, or nitrogen can enhance resistance to pitting corrosion. A widely used method for assessing the pitting resistance of corrosion-resistant alloys is the Pitting Resistance Equivalent Number (PREN), which is calculated through an empirical formula. PREN is a key metric in ranking the effectiveness of alloys against pitting corrosion. The most common form of this equation is:

    PREN = CRwt% + 3.3 x (Mowt% + 0.5 x Wwt%) + 16 x Nwt%

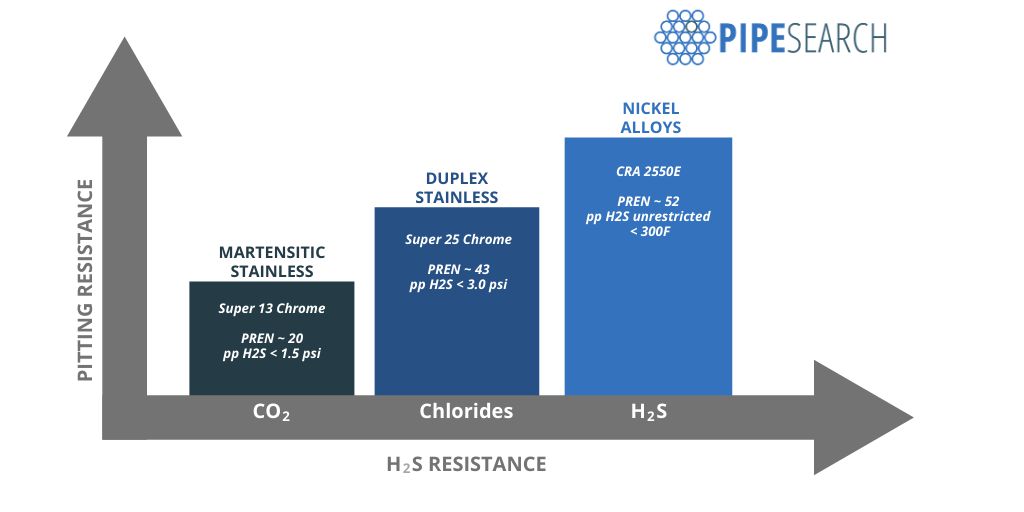

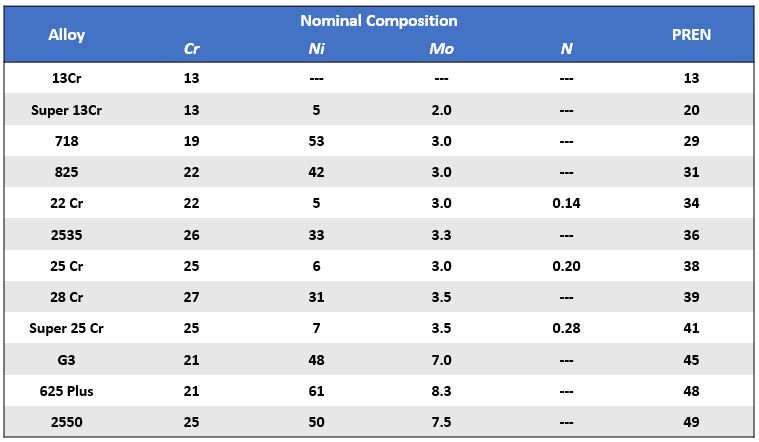

    Below is a comparison of PREN values for commonly used alloys in oil and gas well completions, particularly for OCTG corrosion applications.

    Improving Corrosion ResistanceRecommendations for Severe Conditions

    For environments where chloride content exceeds 100,000 ppm or oxygen content surpasses 10 ppb, using corrosion-resistant alloys with a high PREN is essential. Specifically, in conditions such as seawater exposure or risk of oxygen contamination, alloys with PREN values greater than 40 are recommended. This ensures maximum corrosion resistance and minimizes the risk of localized pitting corrosion.

    Stress Corrosion Cracking (SCC) Prevention

    Pitting corrosion and tensile stresses can act as a stress riser, triggering Stress Corrosion Cracking (SCC). Alloys with higher nickel content provide superior resistance against SCC, particularly in the presence of chlorides. Alloys containing over 42% nickel are widely regarded as immune to SCC caused by chlorides, making them an ideal choice for harsh environments.

    In Summary

    Selecting alloy materials with high PREN values and appropriate nickel content is critical for effectively mitigating pitting and OCTG corrosion in high-chloride or oxygen-containing environments. By adhering to these guidelines, industries such as oil and gas can ensure longer-lasting and more durable performance under extreme conditions.

  • Offshore Waterfloods

    Offshore Waterfloods

    And the importance of PREN

    Waterflood injection wells are critical in maintaining reservoir pressure and optimizing oil recovery. This is especially important in deepwater environments, where the design of wells and facilities must minimize the risk of corrosion-related failures. A failure in an injection well can significantly impact production rates and increase Lease Operating Expenses (LOE).

    One essential consideration in tubular design for waterflood injection is the Pitting Resistance Equivalent Number (PREN). PREN is a measurement used to compare the resistance of various alloys to localized corrosion, based on their chemical composition. The formula specified by NACE MR0175 for calculating PREN is as follows:

    PREN = CR% + 3.3 x (Mo% + 0.5 + W%) + 16 x N%

    For saltwater injection applications, it is recommended that materials have a PREN greater than 40. This ensures greater corrosion resistance, especially when facing challenges like oxygen contamination in the injected water.

    One of the most commonly used materials for these applications is Super 25 Chrome (Super 25 Cr). Thanks to its PREN value of 40+, Super 25 Cr offers a high level of resistance to pitting and crevice corrosion, making it an ideal choice for seawater injection wells. Duplex and super-duplex stainless steels are also frequently utilized due to their superior mechanical properties and excellent corrosion resistance.

    However, global supply chain challenges have led to extended lead times for materials like Super 25 Cr. Recognizing this, PipeSearch maintains access to commonly needed long-lead delivery items, allowing operators to source essential materials on short notice.

    With the rising demand for highly resistant alloys like Super 25 Cr, duplex, and super-duplex stainless steels, understanding and prioritizing PREN is crucial for ensuring the reliability and longevity of waterflood injection systems in offshore environments.

  • CO2 & General Corrosion

    CO2 & General Corrosion

    And Chromium’s Role in Corrosion Protection

    Corrosion rates depend on various factors, including temperature, pH, flow rate, and oxygen or organic acids. CO2 corrosion is the most common cause of general corrosion in oil and gas production. When water is present, CO2 reacts to form carbonic acid, a highly corrosive agent. This becomes especially problematic in gas fields, where water condensation often occurs if the temperature drops below the dew point—an issue frequently observed during start-up or shut-in phases.

    Corrosion-resistant alloys (CRA OCTG) protect against corrosion through chromium content, forming a passive, protective layer. The higher the chromium content, the stronger the corrosion resistance. Martensitic stainless steels with 13% chromium can provide adequate protection for mild conditions. However, if the pH level drops below 3.5, higher-grade alloys, such as duplex stainless steels, are recommended.

    When considering materials for injection wells, it is critical to carefully model pH levels for current and anticipated conditions. Proper modeling is not recommended for using 13% chromium steel in such environments.

    Elevate your corrosion resistance by selecting the right alloy for your operational needs and ensuring long-term protection against CO2 corrosion.

  • Galvanic Corrosion in Oil & Gas Production: What You Need to Know

    Galvanic Corrosion in Oil & Gas Production: What You Need to Know

    What Is Galvanic Corrosion?

    Galvanic corrosion, also known as bimetallic corrosion, occurs when two dissimilar metals come into contact in the presence of an electrolyte. This electrochemical reaction is driven by the difference in electropotential between the metals, like the process within a battery.

    How Galvanic Corrosion Happens

    When galvanic corrosion occurs, ions migrate from the less noble metal (the anode) to the more noble metal (the cathode). However, for this process to take place, two conditions must be met:

    • Presence of an electrolyte
    • Electrical contact between the metals

    Packer or production fluids often serve as electrolytes within oil and gas production. Fluids with low conductivity, like oil-based packer fluids, pose minimal risk. However, water-based packer and acidizing fluids, which are stronger electrolytes, present a greater concern for galvanic corrosion.

    Factors Influencing Galvanic Corrosion

    Several factors impact the severity and likelihood of galvanic corrosion, particularly in systems involving nickel pipe, steel casing, or nickel casing.

    • Electropotential Difference: The greater the electropotential difference between two metals, the higher the corrosion rate in the anode. However, this isn’t solely determined by the metal alloy—it is also influenced by the surrounding environment, surface conditions, and protective films.
    • Surface Films and Scale: Corrosion inhibitors and natural surface films can act as insulators, reducing the risk of galvanic corrosion. For example, Nickel-based alloys and stainless steels often form passive surface films in oxidizing environments, preventing corrosion. However, under reducing conditions (e.g., during acidizing), these protective films may break down, increasing the risk of accelerated galvanic corrosion.
    • Cathode-to-Anode Surface Area Ratio: A high ratio of cathode surface area to anode surface area can accelerate corrosion at the anode. This effect is critical to consider in the design and maintenance of oil and gas production equipment.

    Why Galvanic Corrosion Is a Concern in Oil & Gas Production

    Different metals are common in oil and gas systems, creating frequent opportunities for galvanic corrosion. Here are some key examples:

    • Mixed tubing strings
    • Nickel pipe or nickel casing components in contact with steel casing
    • Nickel alloy accessories used alongside stainless steel tubing

    Prolonged exposure to harsh conditions like water-based packer fluids or acidizing environments can further heighten the risk of galvanic corrosion, leading to equipment degradation and increased maintenance costs.

    By understanding how galvanic corrosion develops, its influencing factors, and common scenarios in oil and gas production, operators can take preventative measures, such as using corrosion inhibitors and selecting the right materials to extend the longevity of equipment.
