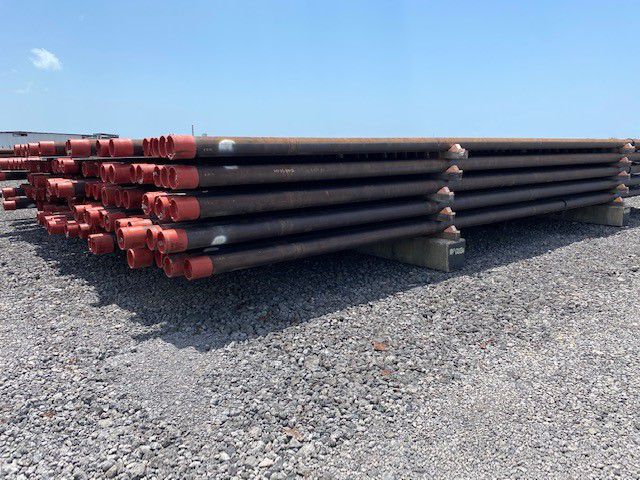

OCTG 7″ 32# 13CR 80 VAM TOP HC R3

13 Chrome L80 (UNS S42000) is a quenched and tempered martensitic stainless steel offering reliable corrosion resistance in sweet (CO₂) and mildly sour (H₂S) environments up to 300°F. Qualified under API 5CT (Group 2, Grade L80, Type 13Cr), it’s ideal for downhole tubulars, packers, and subsurface equipment. Designed to meet NACE MR0175 standards, it performs well in mildly corrosive conditions, with recommended H₂S limits of 1.5 psi at pH ≥ 3.5. VAM TOP® HC™ is a derivative connection of VAM TOP®. VAM TOP® HC™ (High Compression) is a Threaded & Coupled (T&C) premium connection which has been designed with the main features of the VAM TOP® product line. VAM TOP® and VAM TOP® HC™ are interchangeable. VAM TOP® HC™ product lines benefit from the most reliable performances, demonstrated through a large number of qualification tests such as ISO13679 CAL-IV with up to 100% PBYS compression rating.​

Available Quantity

11,000

FT

Condition

Unused

Mill Year

2022

Manufacturer

Nippon

Location

Texas, USA

Submit Inquiry

What is PipeFacts?

Field Inspection

Completed!

Receiving Inspection

In Progress

Final Inspection

Not Started

Certified Report

Not Started

Field Inspection Complete!

In this first step of our PipeFacts™ quality assurance process, we send our field services team to inspect material in its stocked location. During the initial evaluation, we ensure that this material is suitable for acquisition and suitable for prime applications. Once the field inspection is complete, we move material to one of our regional storage and inspection hubs for further inspections.

What is

Field Inspection

?

10%
  • Traceability to MTR's
5%
  • Visual Body Inspection (VBI)
  • Visual thread Inspection (VTI)
  • Tally
  • Drift

Size

Nominal OD

7

in.

Nominal ID

6.094

in

Nominal Wall Thickness

0.453

in

Drift

5.969

in

Special Drift

6

in

Strength

Minimum Yield Strength

80

KSI

Minimum Ultimate Tensile Strength

95

KSI

Collapse Pressure

8,610

PSI

Internal / Burst Pressure

9,060

PSI

Disclaimer: The burst and collapse figures displayed are based on the API dimension tolerance of 87.5% of nominal wall thickness. Note that martensitic, duplex, super duplex, and nickel alloys often have tighter dimensional tolerances, therefore, increased strength ratings. The properties do not factor connection performance ratings. If your application requires more information ratings, please contact our technical services team, and we happily assist you.

Alloy

13CR

Family

Martensitic Stainless

Corrosion Resistance Level

Mild

Alloy Description

13 Chrome is a quenched and tempered martensitic stainless steel primarily used for corrosion resistance in environments with CO2 (sweet) and mild H2S (sour) exposure, with an operational temperature limit of up to 300°F. It is commonly applied in downhole tubular components, packers, and other subsurface equipment. This material is included in API 5CT as Group 2, Grade L80, Type 13Cr, and its yield strength and hardness are controlled to meet NACE MR0175 requirements.

While 13 Chrome L80 offers effective resistance in mildly corrosive conditions, its performance can be limited by factors such as pH, chloride concentration, temperature, and H2S content. According to NACE MR0175/ISO 15156, it is recommended for environments with a maximum H2S partial pressure of 1.5 psi and a pH ≥ 3.5 (refer to Table A.19).

Elemental Composition

C
6
Carbon
0.15%‒0.22%
Si
14
Silicon
1%
P
15
Phosphorus
0.02%
S
16
Sulfur
0.01%
Cr
24
Chromium
12%‒14%
Mn
25
Manganese
0.25%‒1%
Fe
26
Iron
83%‒87.6%
Ni
28
Nickel
0.5%
Cu
29
Copper
0.25%

Name

VAM TOP HC

Licensee

VAM

Category

Premium

Thread Type

Threaded & Coupled

Description
